Stainless Steel Outdoor Chimney

Stainless Steel Outdoor Chimney CHIMNEY with Radiation Plate

The stainless steel outdoor chimney CHIMNEY is a high-quality chimney system for wood-fired sauna stoves, combining a durable stainless steel construction with a system solution designed for passing through wooden walls.

With a system diameter of 130 mm, the set includes the essential components for professionally guiding the flue pipe from the sauna stove through the exterior wall to the vertically routed outdoor chimney.

The included radiation plate supports a clean and functional integration of the chimney system into the sauna area.

Your Benefits

• High-quality stainless steel chimney system
• Suitable for wood-fired sauna stoves
• System diameter: 130 mm
• Includes radiation plate
• With FinTec wooden wall pass-through
• Includes roof collar
• Includes chimney cap and rain cover
• Coordinated system components

Complete Chimney System for Sauna Stoves

The CHIMNEY chimney system directs the exhaust gases of the wood-fired sauna stove through the flue pipe to the wall pass-through and then outside via double-walled stainless steel pipes.

The transition from single-walled to double-walled pipe routing and the FinTec Katto NOVA wooden wall pass-through are part of the system.

This solution is particularly suitable for high-quality sauna houses where wood stoves and outdoor chimneys are considered as an integrated technical and architectural system during the planning phase.

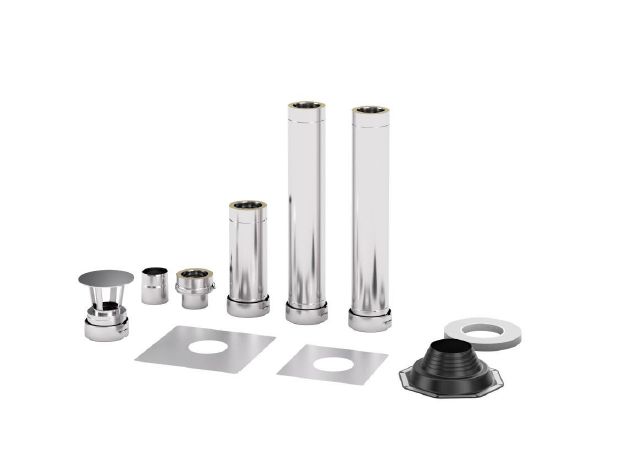

Scope of Delivery

• 1 × Flue pipe, 150 mm
• 1 × Transition from single-walled to double-walled
• 2 × Stainless steel pipe DW, each 1,000 mm
• 1 × Stainless steel pipe DW, 500 mm
• 1 × FinTec wooden wall pass-through Katto NOVA
• 1 × Roof collar
• 1 × Chimney cap
• 1 × Rain cover
• Radiation plate

Technical Data

• Material: Stainless steel
• System diameter: 130 mm
• Flue pipe: 150 mm
• Double-walled stainless steel pipes: 2 × 1,000 mm + 1 × 500 mm
• Wooden wall pass-through: FinTec Katto NOVA

For High-Quality Sauna Houses with Wood Stoves

A wood-fired sauna stove not only shapes the warmth but also the special atmosphere of a sauna. The CHIMNEY stainless steel chimney system provides the technical foundation for the associated exhaust gas routing and integrates particularly well into modern sauna houses with its high-quality stainless steel look.

High-quality stainless steel chimney system for wood-fired sauna stoves – includes radiation plate, wooden wall pass-through, double-walled pipe routing, roof collar, and rain cover.
