FNT 3000-Design-Touch (SAUNA)

FNT 3000-Design – Premium Sauna Control with Separate Touch Panel

The Fasel FNT 3000-Design combines professional sauna technology with an elegant and minimalist design. The compact glass touch control panel is separated from the main unit and power component, allowing for discreet integration of the sauna control.

Only the high-quality black touch panel with an LCD graphic display remains visible. The larger main unit can be positioned separately, making the FNT 3000-Design ideal for modern sauna houses and sophisticated wellness areas where technology is part of a thoughtful design concept.

Your Benefits

• Premium sauna control by Fasel
• For Finnish saunas
• Compact, separate touch control panel
• Elegant glass touch design
• LCD graphic display
• Intuitive and language-neutral operation
• Professional two-sensor system
• ECO Mode
• Display lighting indicates heating status
• Minimal visible space requirement
• Low installation depth of the touch panel
• Separate main and power unit
• Control of cabin light and fan

Reduced Design for Sophisticated Sauna Architecture

In the FNT 3000-Design, the control panel and main unit are separated. This means that the entire sauna control system does not need to be visibly mounted next to the sauna.

The compact touch panel measures only 88 × 88 mm and integrates harmoniously with its understated black glass surface into modern wall designs and high-quality interior concepts.

The separate main and power unit handles the actual power control and can be positioned in a suitable location outside the immediate visible area.

This creates a significantly reduced overall appearance in architecturally demanding sauna houses: The technology remains present where it needs to be operated and recedes where architecture takes center stage.

Intuitive, Language-Neutral Touch Operation

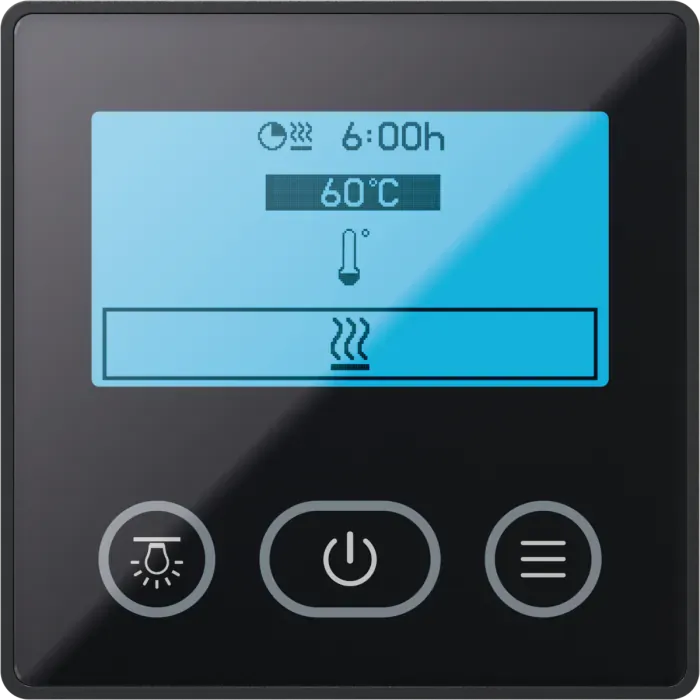

The high-quality glass touch control panel with LCD graphic display enables simple and intuitive sauna control.

The user interface is designed to be language-neutral, making it particularly suitable for private wellness areas, vacation properties, and internationally used sauna houses.

The display lighting also indicates the current heating status. The integrated ECO Mode enhances the comfortable operation.

Professional Two-Sensor System

The Fasel FNT 3000-Design comes with a stove sensor and an additional bench sensor.

The stove sensor measures the temperature in the sauna stove area. The additional bench sensor allows for further temperature measurement in the seating area of the sauna users.

This two-sensor system provides a professional technical foundation for temperature control in a high-quality Finnish sauna.

For Finnish Saunas up to 110 °C

The FNT 3000-Design is designed for controlling classic Finnish saunas. The adjustable temperature range is from 40 to 110 °C.

The control system is suitable for sauna stoves with a switching capacity of up to 9 kW. According to the manufacturer, corresponding load switching extensions are available as accessories for larger stove capacities.

Integrate Light and Fan

In addition to the sauna stove, cabin lighting and fans can also be controlled via the FNT 3000-Design.

A maximum connection power of 120 W is available for both light and fan. According to the manufacturer, both connections are dimmable.

Dimensions

Touch Control Panel:

• Width: 88 mm
• Height: 88 mm
• Total depth: approx. 32 mm
• Visible build-up height: approx. 18 mm

Main Unit / Power Component:

• Width: 285 mm
• Height: 247 mm
• Depth: approx. 87 mm

Technical Data

• Model: Fasel FNT 3000-Design
• Sauna type: Finnish sauna
• Electrical connection: 400 V 3N ~ 50 Hz
• Switching capacity for sauna stove: up to 9 kW
• Temperature range: 40–110 °C
• Light connection: max. 120 W, dimmable
• Fan connection: max. 120 W, dimmable
• Heating time limit: 6 hours, maximum 20 hours
• Permissible ambient temperature during operation: 0 to +40 °C
• Protection class: IPX4
• Weight with packaging: approx. 2.6 kg

Scope of Delivery

• 1 × Control panel with touch display
• 1 × Main unit / power component
• 1 × Connection cable, 5 m
• 1 × Stove sensor in beige
• 1 × Bench sensor in beige

The Design Solution for Modern Sauna Houses

In a high-quality sauna, not only the functionality of the technology matters but also its integration into the architecture. This is where the Fasel FNT 3000-Design excels.

The small glass touch panel remains visible as a high-quality control unit, while the separate main unit can be discreetly positioned. This results in a particularly neat appearance that fits perfectly with modern sauna houses, large glass surfaces, and minimalist wellness concepts.

Fasel FNT 3000-Design – professional sauna control for Finnish saunas with a compact glass touch panel, separate power unit, language-neutral operation, and professional two-sensor system.
