FNT 3200-Design-Touch (SAUNA+HUMIDITY)

FNT 3200-Design – Premium Sauna Control for Finnish Sauna & Sauna with Humidity

The Fasel FNT 3200-Design combines versatile professional sauna technology with an especially elegant, architecturally minimalist control solution. The compact glass touch panel is spatially separated from the main and power unit, making it particularly discreet for integration into high-quality sauna houses and modern wellness areas.

Only the compact black touch panel with an LCD graphic display remains visible. The larger main and power unit can be positioned separately, keeping the technology in the background where architecture, materials, and atmosphere take center stage.

At the same time, the FNT 3200-Design offers exceptional flexibility: It is suitable for both the classic Finnish sauna and a sauna with humidity, enabling different sauna experiences within a sophisticated private wellness concept.

Your Benefits

• Premium sauna control by Fasel
• For Finnish sauna and sauna with humidity
• Compact separate touch control panel
• Elegant glass-touch design
• LCD graphic display
• Intuitive and language-neutral operation
• Professional 2-sensor system
• ECO Mode
• Display lighting indicates heating status
• Minimal space requirement in the visible area
• Low installation depth of the touch panel
• Separate main and power unit
• Control of cabin lighting and fan
• Ideal for high-quality sauna and wellness concepts

Finnish Sauna or Sauna with Humidity

With the FNT 3200-Design, different forms of sauna experiences can be conveniently realized through a single control system.

• For the classic Finnish sauna, a temperature range of 40 to 110 °C is available.
• For a sauna with humidity, the control operates within a temperature range of 30 to 65 °C and allows humidity regulation from 30 to 80%.

This makes the FNT 3200-Design particularly suitable for individually planned sauna houses where classic sauna experiences and gentler humidity saunas are combined.

Minimalist Design for Sophisticated Sauna Architecture

In the FNT 3200-Design, the control unit and main device are separated. This means the entire sauna control system does not need to be visibly mounted next to the sauna.

The black glass touch panel measures only 88 × 88 mm and seamlessly integrates into modern wall surfaces and high-quality interior concepts with its minimalist appearance.

The separate main and power unit handles the actual power control and can be installed in a suitable position outside the immediate visible area.

The result is a particularly tidy design: The controls remain easily accessible, while the technical installation visually recedes into the background.

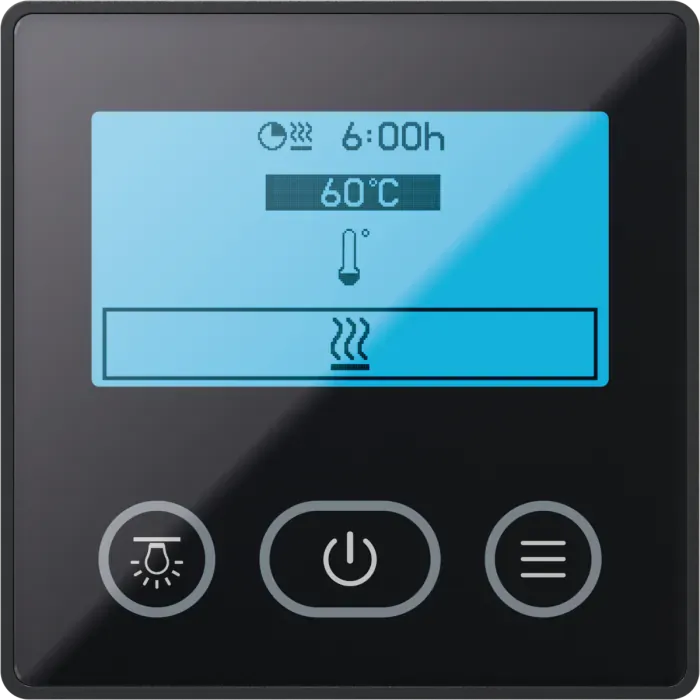

Intuitive and Language-Neutral Touch Operation

The high-quality glass touch control panel with an LCD graphic display enables simple and intuitive sauna operation.

The user interface is designed to be language-neutral, making it ideal for vacation properties, international users, and high-end hospitality or wellness concepts.

The display lighting also signals the current heating status. The ECO Mode complements the convenient operation.

Professional 2-Sensor System

The Fasel FNT 3200-Design includes an oven sensor and an additional bench sensor.

• The oven sensor measures the temperature in the sauna oven area.
• The bench sensor provides additional temperature measurement in the seating area of the sauna.

The 2-sensor system forms a professional basis for temperature control in demanding sauna solutions.

Control of Sauna Heater and Humidifier

The FNT 3200-Design is designed for sauna heaters with a switching capacity of up to 9 kW. Additionally, a humidifier with a capacity of up to 3 kW can be controlled.

This allows for both the classic Finnish sauna and a sauna with humidity to be managed within a single control system.

Convenient Integration of Lighting and Fan

In addition to the sauna heater and humidifier, the FNT 3200-Design can also control cabin lighting and fans.

• Lighting and fan connections each support a maximum power of 120 W.
• Both connections are dimmable according to the manufacturer's specifications.

Dimensions

Touch Control Panel:

• Width: 88 mm
• Height: 88 mm
• Total Depth: approx. 32 mm
• Visible Height: approx. 18 mm

Main Device / Power Unit:

• Width: 285 mm
• Height: 247 mm
• Depth: approx. 87 mm

Technical Specifications

• Model: Fasel FNT 3200-Design
• Sauna Type: Finnish Sauna and Sauna with Humidity
• Electrical Connection: 400 V 3N ~ 50 Hz
• Switching Capacity Sauna Heater: up to 9 kW
• Switching Capacity Humidifier: up to 3 kW
• Temperature Range Finnish Sauna: 40–110 °C
• Sauna with Humidity: 30–65 °C / 30–80%
• Lighting Connection: max. 120 W, dimmable
• Fan Connection: max. 120 W, dimmable
• Heating Time Limit: 6 hours, maximum 20 hours
• Permissible Ambient Temperature in Operation: 0 to +40 °C
• Protection Class: IPX4
• Weight with Packaging: approx. 2.6 kg

Scope of Delivery

• 1 × Control Panel with Touch Display
• 1 × Main Device / Power Unit
• 1 × Connection Cable, 5 m
• 1 × Oven Sensor in Beige
• 1 × Bench Sensor in Beige

The Design Solution for Versatile Private Wellness Concepts

In a high-quality sauna, technology and design go hand in hand. The Fasel FNT 3200-Design combines a particularly compact visible control element with the capabilities of professional sauna and humidity control.

The small glass touch panel remains visible as an elegant control unit, while the separate main unit can be discreetly positioned. This makes the control system ideal for modern sauna houses with generous glass surfaces, premium materials, and deliberately minimalist architecture.

Fasel FNT 3200-Design – professional premium sauna control for Finnish sauna and sauna with humidity, featuring a compact glass touch panel, separate power unit, 2-sensor system, and language-neutral operation.
